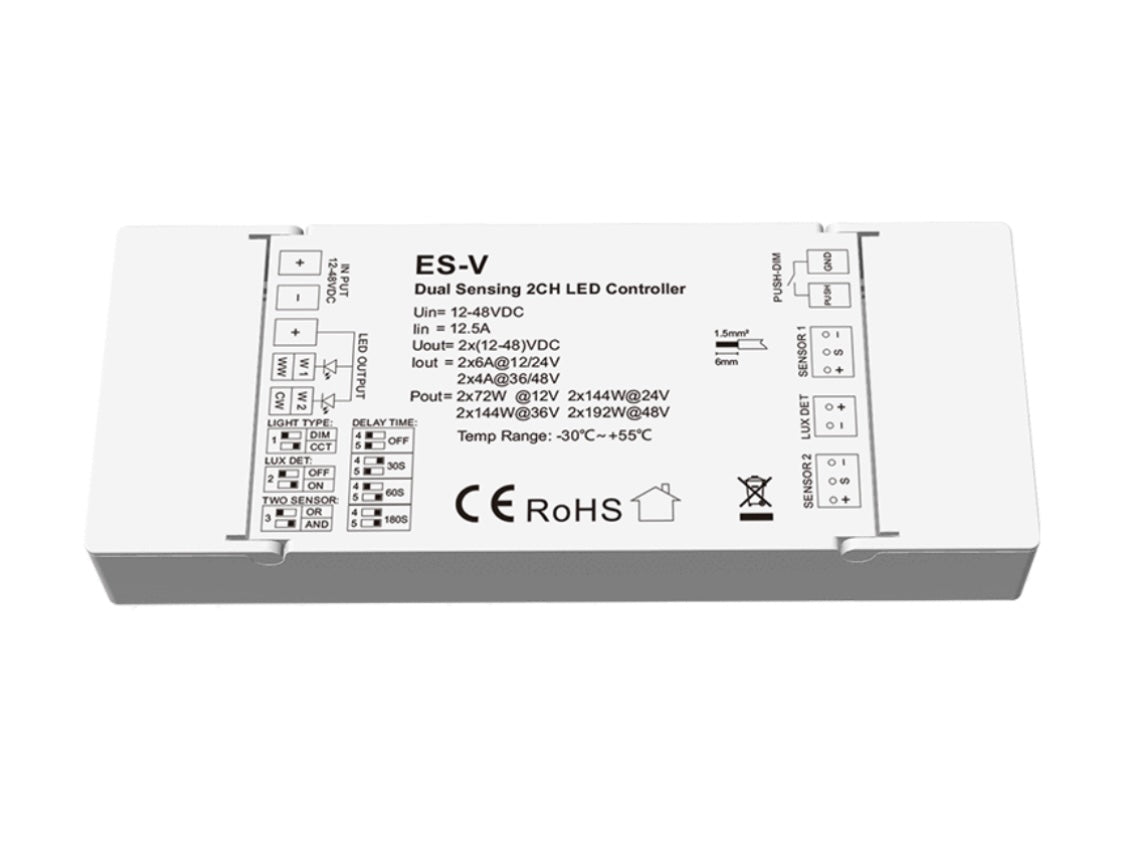

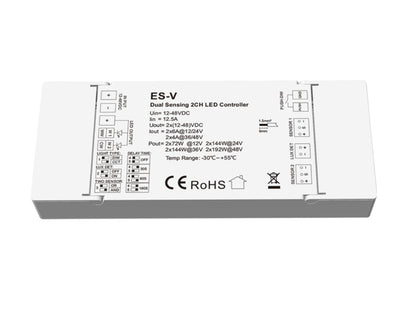

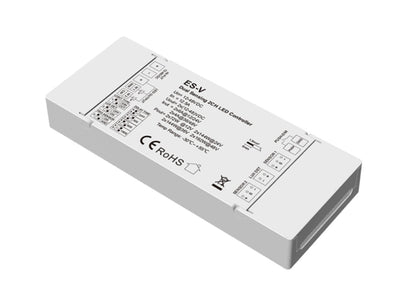

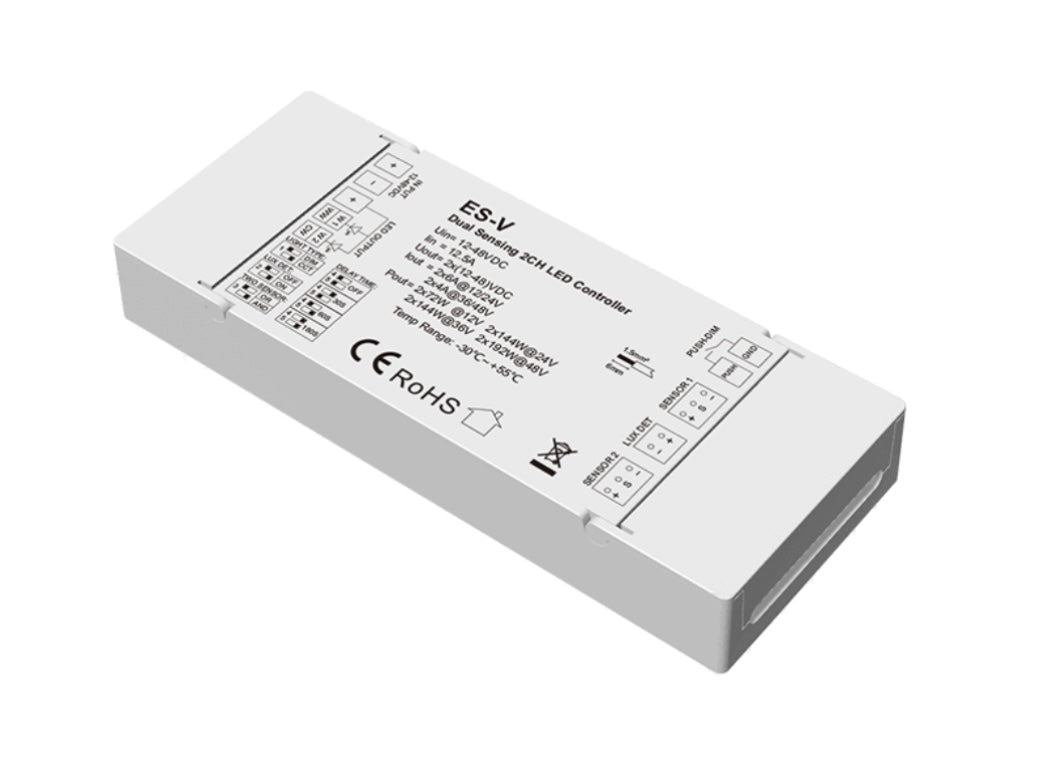

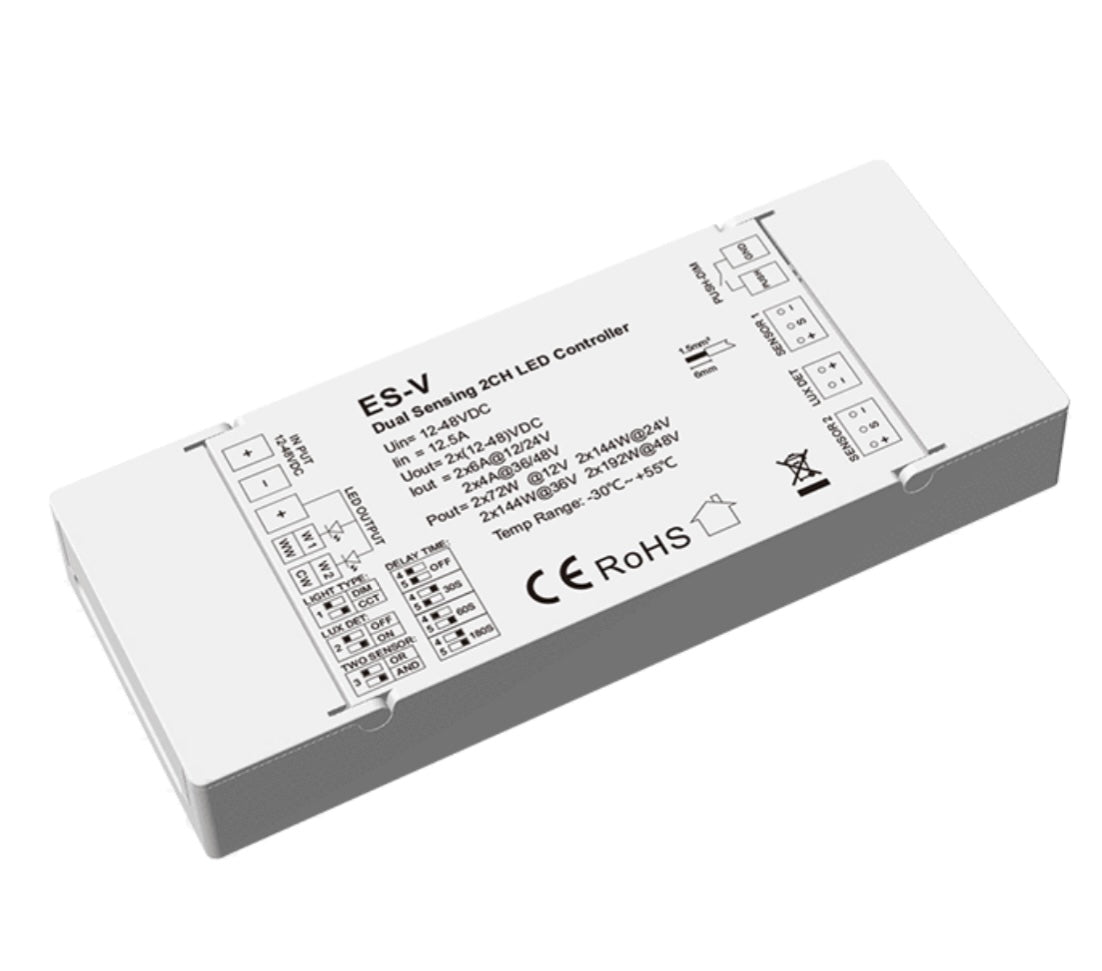

ELITE LED 12-48VDC DUAL SENSOR 2CH LED CONTROLLER ES-V

The ES-V is a dual-channel LED controller designed for seamless control of color temperature (CCT) or single-color LED strips. It features dual-sensing technology, allowing integration with PIR motion sensors, door sensors, and hand sweep sensors for automatic lighting control. This versatile controller operates on a 12-48V DC input voltage and offers smooth dimming and brightness adjustment through various sensor inputs or a self-reset switch.

Key Features:

• Dual Sensor Input: Supports PIR motion sensors, door sensors, and hand sweep sensors for automatic lighting activation.

• Two-Channel Control: Enables independent or synchronized control of two LED outputs.

• Adjustable Color Temperature & Brightness: Ideal for CCT (correlated color temperature) LED strips or single-color LEDs.

• DIP Switch Configuration: Allows customization of lighting modes, daylight detection, and delay settings.

• High-Power Output: Supports up to 2x 192W at 48V DC, making it suitable for high-power LED installations.

• PWM Dimming: Provides 4096 dimming levels with a 2kHz frequency, ensuring flicker-free dimming.

• Compact & Durable Design: Built for reliability, with a maximum case temperature of 85°C and an operating range from -30°C to +55°C.
